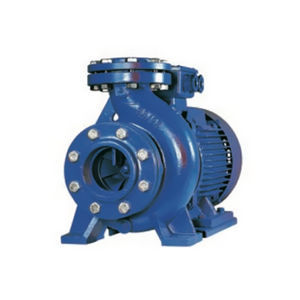

Impeller pump GNI series

airelectricstationary

range are monobloc groups, consisting of the standard EN 733 (Ex DIN 24255) pump coupled to a standard motor. This range covers the hydraulic field of application given in the standard with the advantages of its compact construction, easy installation, perfect alignment pump-motor and small dimensions Characteristics Monoblock group with standard pump according to EN733 – Ex DIN 24255 Pressures up to 100 mts. Speed : 1450 and 2900 RPM. Operating data according to ISO 9906. Standardized electric motors according to EN 60034 / DIN VDE 0530 / IEC 34-72 / IE-3 asynchronous type with squirrel cage rotor, IP 55, and insulation class F. For continuous operation S1 at nominal power. Applications Civilian supplies Industrial applications for pumping non-aggressive clean water Pressure Equipment Fire fighting equipment Air conditioning and heating Agricultural Sprinkler and drip irrigation systems Swimming pool purification Golf courses Sources Green spaces and gardening Washing tunnels Materials Pump body, impeller, closing rings, body cover and support cover in cast iron. Pump shaft in stainless steel 13 % Cr. B5 motors for sizes up to 132. B35 motors for larger sizes. Optional Pump body bronze/Inox Bronze impeller Axle steel AISI 316 Possibility of incorporating special motors for explosive atmosphere, marine environment, tropical climate, etc.
