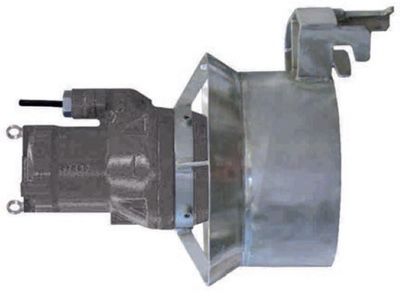

Centrifugal pump BR series

wastewaterslurryelectric

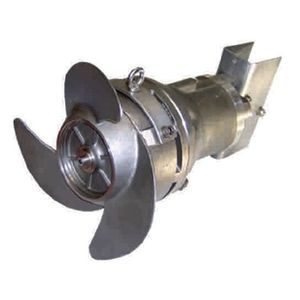

Recirculation Pumps, mainly used in wastewater treatment plants, are designed to transfer low or medium viscosity liquids from one tank to another, keeping the active sludge moving, especially in nitrification and denitrification processes. These pumps are also used to transfer large flows at low altitudes, guaranteeing excellent hydraulic efficiency. For easy installation and easy working position, it has a sliding system in the tank, through an automatic quick coupling system and a set of guide tubes. Characteristics They are based on the same design and principles as the AGS submerged agitators, which ensures simpler maintenance and repair programs. The hydraulic part and the motor of the BR series are joined by a common shaft, protecting the engine’s watertightness, by means of a double mechanical seal system housed in a dielectric oil chamber, which lubricates and cools the mechanical seals. Helix made of stainless steel microfusion, 3 blades in AISI 316, for its design is self-cleaning and protects the group of possible blockages and blockages, ensuring a very high performance. Shaft rectified in the base of the bearings and base of the mechanics, oversized with respect to the standard parameters of use and dynamically balanced. No lubrication required Depending on service requirements, there are two production series available: G-series with GG-25 motor housing X-Series with motor housing AISI-316L Maximum number of starts, 15 per hour. Applications Pumping stations and recirculation of active sludge in wastewater treatment plants in nitrification and denitrification processes. Sewage pumping Sludge recirculation Biogas plants Pumping of slurry
