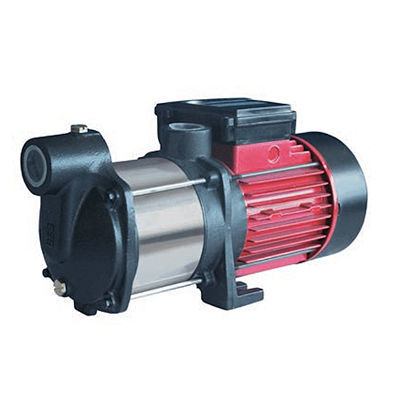

Centrifugal pump VIPH serieswaterwith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- with electric motor
- Mobility
- stationary, mobile
- Domain
- industrial
- Material
- stainless steel, ceramic
- Other characteristics
- suction, mechanical, radial, reinforced, multicellular
- Flow
Min.: 0.9 m³/h
(31.7832 ft³/h)Max.: 9 m³/h
(317.832 ft³/h)- Pressure
11 bar
(159.542 psi)- Head
Min.: 0 m
(0'00" )Max.: 80 m
(262'05" )- Power
Min.: 0.6 kW
(0.82 hp)Max.: 2.2 kW
(2.99 hp)- Fluid temperature
50 °C
(122 °F)
Description
Quiet running multicellular centrifugal pump suitable for pressure groups regulated by pressure switches or speed variators.
Application
Civilian supplies
Industrial supplies
Agricultural supplies sprinkler irrigation
fire-fighting equipment
etc
Construction
Impeller in stainless steel AISI 304 radial type
Graphite/ceramic mechanical seal
Suction body in cast Hº GG-25
Diffusers in fiberglass reinforced noryl
Monobloc configuration with stainless steel shaft motor.
Equipped with threaded jaws
