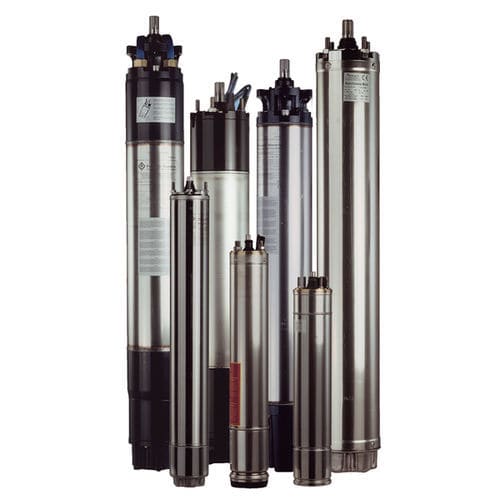

Asynchronous motor CORMOTOR series

submersiblesquirrel cagesubmersible

Submersible motors from 4″ to 12″. Operation at 50Hz Operation at 50Hz CHARACTERISTICS: Refrigeration Uses the same liquid extracted by the pump acting as a coolant as it passes through. around the engine The minimum circulation speeds vary between 8 cm/sg and 16 cm/sg depending on the model. Refrigeration Jacket It will be necessary in those places where the minimum speed is not assured. refrigeration For additional control of the motor temperature, PTC or PT100 probes can be incorporated into the winding. CONSTRUCTIVE WAY: The submersible motors are of asynchronous type IP-68 Squirrel cage rotor mounted on special collinetes Supports the axial thrust of the pump by means of a generously dimensioned axial bearing Stator winding flooded with oil and water depending on 4″,6″,8″,10″,12″. Internal lubrication of the bearings, requiring no maintenance Elastic diaphragm that compensates the difference in pressure between the inside and outside Normalized coupling flanges according to NEMA standards Designed to work in horizontal position with variator.
