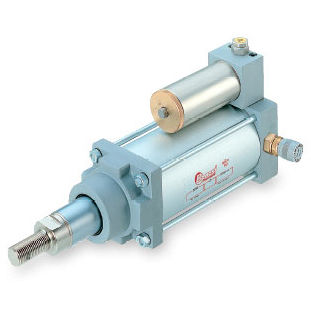

Hydro-pneumatic cylinder UD seriesdouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydro-pneumatic
- Configuration
- double-acting
- Stroke
Min.: 50 mm
(1.969 in)Max.: 500 mm
(19.685 in)- Bore
50 mm, 63 mm, 80 mm, 100 mm
(1.97 in, 2.48 in, 3.15 in, 3.94 in)- Pressure
7 bar
(101.5 psi)- Speed
Min.: 16 mm/min
(0.01 in/s)Max.: 60 mm/min
(0.04 in/s)- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
The UD series units are manufactured for use where it is required the regulation of the power stroke only. Units are supplied with integrated expansion tank.
Available versions:
- Regulated in thrust - free return
- Regulated in pull – free thrust
Catalogs
Pneumo-hydraulic control units
28 Pages
