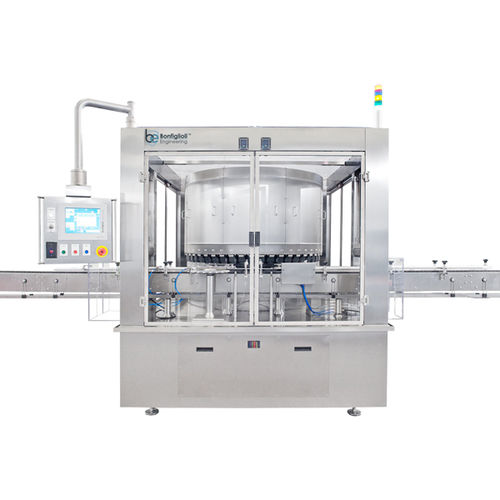

Vacuum leak tester RLD 400 EC

for empty containersin-lineautomatic

-Zero downtime -Zero alteration of container features -Quality Ensured: No leaking containers due to: microholes, inappropriate sealing or cracks -Safe products for the end-user & manufacturers protection from financial loss due to recalls, lawsuits and potential adverse publicity Technical Features -Container Application: Capsules, Bottles, Cups, Ready Meals -Container Dimensions: 35 mm x 35 mm x 35 mm (min), 87 mm x 87 mm x 305 mm (max) -Speed: From 250 to 500 cpm -Technology: CCIT Inspection Features: Non-Invasive, Non-Destructive CCIT based on Vacuum Decay Method -Inspection Capabilities: Microleaks detection Additional Benefits -High machine adaptability & stability -Customizable solutions for line interface -Easy bypass and reduced downtime in case of interference thanks to safety clutches present in each testing chamber shaft and star wheels. -Quick Format Change: Automatic height adjustment Technology -Container Closure Integrity Testing is a non-destructive measurement technology based on Vacuum Decay Method and Lid Deflection performed while the package itself is held within an hermetically sealed test chamber. -Vacuum Decay test measures the loss of vacuum inside the testing chamber as a result of headspace gas leakage from the package.A special sensor (BHS) is in place to control the integrity of the lid or foil by means of a dedicated package lid deflection algorithm.This application is suggested when applying the vacuum decay leak testing method to containers having non-rigid external surfaces.
