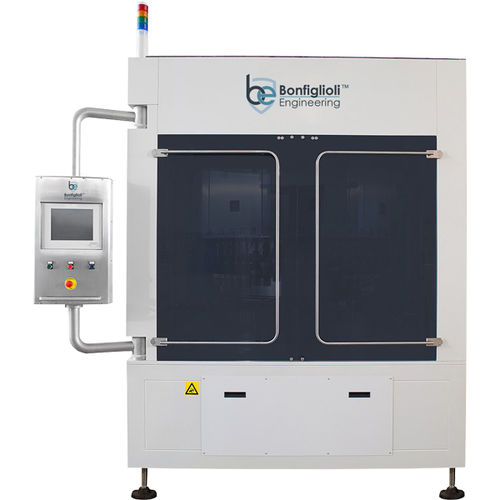

Pressure leak tester RLD-230 series

pneumaticfor empty containersfor aerosol cans

100% In-line Machine for Non-Invasive, Non-Destructive Integrity Inspection at high production speed for empty containers (such as cans, pails, drums, bottles). 3 configurations: RLD-230 BASIC RLD-230R (with Volume Reducers) RLD-230RS (with Volume Reducers & SCADA System) Full integration in Industry 4.0 Environment Technical Features -Container Application: Pails, Drums, Composite Cans, 2 & 3 Pieces Cans, Jerry Cans, Bottles -Container Dimensions: From diameter 25 to 350 mm -Speed: From 60 to 1200 cpm -Technology: Pressure Decay Method -Inspection Features: Non-Invasive, Non-Destructive CCIT based on Pressure Decay Method -Inspection Capabilities: Microleaks detection Additional Benefits -Statistical Process Control reduces deviations for a better yield control -Automatic speed adjustment according to signals coming from line downstream & upstream -Automatic confirmation of proper functioning and behavior of each testing chamber (Autotest) -Increase of test sensitivity in large volume & opening containers with volume reducers -Quick format change: automatic height adjustment -Magnetic star with relevant sensor checks the effective & precise can reject Technology -Container Closure Integrity Testing is a non-destructive measurement technology based on Pressure Decay Method. -Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container. -The test objective is to detect container leakages by measuring the reached pressure level as well as the pressure change over test time.
