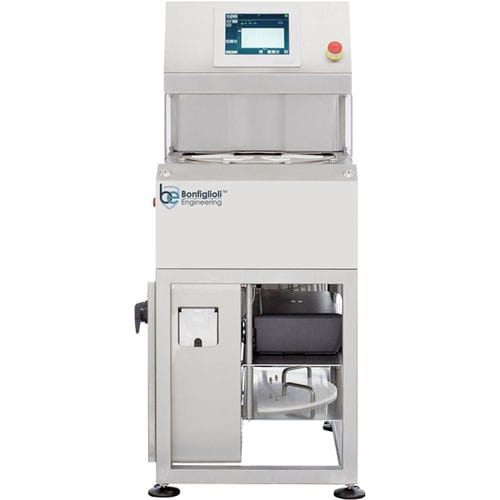

Vacuum leak tester LF-SMH

pressurevacuum decayfor packaging

Non-Invasive, Non-destructive Integrity Inspection System for finished and filled containers for in process and off-line control applications. Highlights Quick and sensitive test Zero alteration of container features Vacuum and positive pressure testing Fast, reliable and repeatable results Highly functional, intuitive HMI Cost-effective solution System autodiagnostics available Technical Features Container application: Ampoules, Vials, Pouches, MDPI, MDI, IV Bags, Flowrapped Device, Flowpacks PFS, Carpoule, Bottles. Products: Filled, Empty, Closed Container dimensions: From 5 x 30 x 5 mm (min) to 86 x 86 x 250 mm (max) Speed: Up to 20 cpm Technology: CCIT Inspection features: Non-Invasive, Non-Destructive CCIT based on Vacuum Decay Method Inspection Capabilities: Microleaks detection Additional Benefits Compact and robust design Maintenance-free Quick change over Low power consumption Storage, maintenance, and download of historical data (production, raw data, events, alarms) HMI Real Time display of Testing Cycle diagram Computerised system is designed to comply with FDA 21 CFR Part 11 and EU Annex 11 Validation Package guarantees complete and efficient regulatory compliance Technology Container Closure Integrity Testing is a non-destructive measurement technology based on Vacuum Decay Method. Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container. The test objective is to detect container leakages by measuring the reached pressure level as well as the pressure change over test time.
