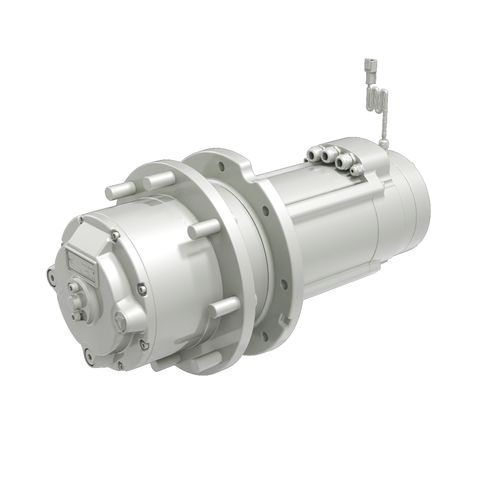

Planetary gear reducer 600WE series

coaxialhollow-shaft500 - 1000 Nm

Bonfiglioli 600WE planetary drives incorporate an integrated, maintenance-free electric motor and offer significant benefits, including compact dimensions, low noise and high efficiency. 600 Series drives are designed for use with all kinds of aerial platforms and other types of mobile machinery, for indoor and outdoor use. This advanced powertrain solution uses a two- or three-stage gearbox offering reduction ratios of up to 1:145 to satisfy the widest possible range of needs. The gearbox is coupled with a low-voltage induction motor (BT Series), specially developed for traction power and control applications. Key features Two- or three-stage planetary drive with reduction ratios of up to 1:145 Optimized gear design for maximum efficiency and minimum noise Integrated, low voltage, 3 phase induction motor with inverter Integrated, high accuracy, KTY temperature sensor High resolution, Hall effect speed sensor
