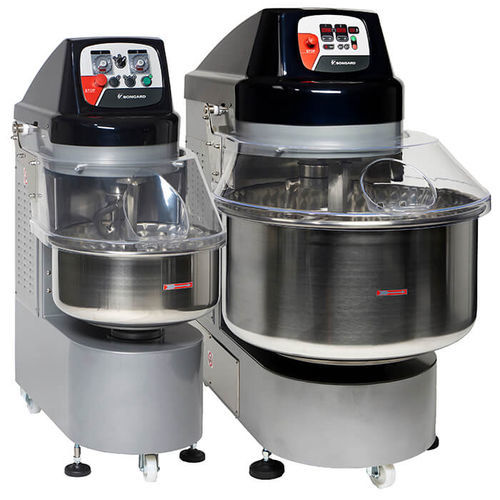

Spiral dough mixer EvO series
for bakerieswith spiral hookfixed bowl

Spiral dough mixer - EvO series - Bongard - for bakeries / with spiral hook / fixed bowl
Spiral dough mixer - EvO series - Bongard - for bakeries / with spiral hook / fixed bowl
Spiral dough mixer - EvO series - Bongard - for bakeries / with spiral hook / fixed bowl - image - 2
Spiral dough mixer - EvO series - Bongard - for bakeries / with spiral hook / fixed bowl - image - 3
Spiral dough mixer - EvO series - Bongard - for bakeries / with spiral hook / fixed bowl - image - 4
Spiral dough mixer - EvO series - Bongard - for bakeries / with spiral hook / fixed bowl - image - 5
Spiral dough mixer - EvO series - Bongard - for bakeries / with spiral hook / fixed bowl - image - 6
Add to favorites
Compare this product


Characteristics

Type
spiral
Applications
for bakeries
Default tool
with spiral hook
Bowl characteristics
fixed bowl
Other characteristics
stainless steel
Electric powered
400V three-phase
Capacity

Min.: 1 l
(0 gal)

Max.: 75 l
(20 gal)

Flour capacity

Min.: 1 kg
(2 lb)

Max.: 125 kg
(276 lb)

Tool speed

Min.: 100 rpm
(628 rad.min-1)

Max.: 207 rpm
(1,301 rad.min-1)

Bowl speed

Min.: 10 rpm
(63 rad.min-1)

Max.: 20 rpm
(126 rad.min-1)

Power

Min.: 1.5 kW
(2.04 hp)

Max.: 8.4 kW
(11.42 hp)

Machine width

Min.: 477 mm
(19 in)

Max.: 735 mm
(29 in)

Machine depth

Min.: 1,000 mm
(39 in)

Max.: 1,530 mm
(60 in)

Machine height

1,370 mm, 1,550 mm, 1,560 mm, 1,620 mm, 1,630 mm
(54 in, 61 in, 61 in, 64 in, 64 in)

Machine weight

Min.: 218 kg
(481 lb)

Max.: 705 kg
(1,554 lb)

Description

The SPIRAL EVO range includes 8 spiral mixers with bowl capacities ranging from 50 to 300 litres (dough capacity: 2 to 200 kg). The SPIRAL EVO mixers are fast, versatile and compact, making them the ideal accessory for achieving top-quality results with all types of dough. At the end of the cycle the dough is perfectly mixed, aerated, and well developed – exactly what you need to create a bread that’s full of flavour! Control panels available : • The “Touch Control” control panel brings an entirely new user experience to the SPIRAL EVO. The interface is sleek, clear, and astonishingly easy to use! • Electronic control panel with settings for programming different mixing times at each speed (1 and 2), and a PANEOTRAD® program that allows the user to set resting times too. • Electromechanical control panel with two timers and two control knobs: one for independently adjusting each speed, and the other for selecting the bowl rotation direction (only on models with a bowl capacity of 80L or more). The advantages Mixing quality: – Control of dough heating – Constant quality, whatever the amount of dough in the bowl – Better dough oxygenation Ergonomics: – Low noise – Cover retention system – Easy cleaning – Intuitive operation • Work on small kneaded • Versatile: suitable for all types of dough • New mode dedicated to Paneotrad (type E)
