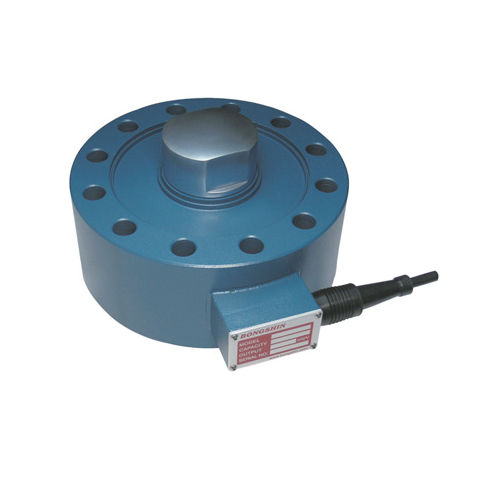

Compression load cell CSDHpancake typesteelprecision
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- pancake type
- Other characteristics
- steel, precision, IP67, hermetic
- Rated load
Max.: 100 t
(110.23 us ton)Min.: 30 t
(33.07 us ton)
Description
Compression Load Cell
(30t ~ 100t)
Alloy Tool Steel,
3mV/V, IP67
The model CSDH is a low profile compression shear type load cell suited to précision applications where headroom and side loads are a problem.
AN units are machined from a solid billet of tool Steel and sealed with welded diaphragms.
-Hermetically sealed
-High rated output(3mV/V)
-Low profile
Catalogs
No catalogs are available for this product.
See all of Bongshin Loadcell Co.,Ltd‘s catalogs
