Single bulb gasket TD-SB-WC-BC-D10-L10-T2tadpoletextilefiberglass
Add to favorites
Compare this product
Characteristics
- Configuration
- tadpole
- Material
- textile, fiberglass
- Application
- for the food industry, for high-temperature applications, for industrial applications, for industrial applications, adhesive tape, furnace
- Other characteristics
- corrosion-resistant, acid-resistant, single bulb
- Temperature limit
Max.: 550 °C
(1,022 °F)Min.: -60 °C
(-76 °F)- Diameter
Max.: 14 mm
(0.551 in)Min.: 8 mm
(0.315 in)- Outer diameter
Max.: 14 mm
(0.551 in)Min.: 8 mm
(0.315 in)
Description
TD-SB-WC-BC-D10-L10-T2

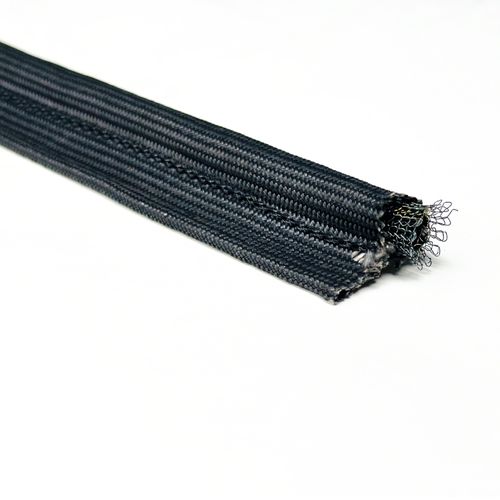

Single bulb tadpole with metal wire core, Diam. 10mm Tail length 10mm Thickness 2mm
Heat resistance up to 550°C
It is a highly resilent textile gasket designed for high temperature applications. The outer surface is composed of multiple intertwined fiber glass yarns that form a rounded tube. To improve the resiliency of the gasket, a special supporting tube made of stainless steel wire is inserted inside the inner core. This allows a superior life cycle while keeping constant spring effects.
To further facilitate the installation onto the frame, a self adhesive tape is available.
Notes: The sizes of the tubes and the width between tubes can be customized.
