DIN rail PLC M-Duino 58+
digital inputanalog inputsdigital outputs

DIN rail PLC - M-Duino 58+ - Boot and Work Corp, S.L. - digital input / analog inputs / digital outputs
DIN rail PLC - M-Duino 58+ - Boot and Work Corp, S.L. - digital input / analog inputs / digital outputs
DIN rail PLC - M-Duino 58+ - Boot and Work Corp, S.L. - digital input / analog inputs / digital outputs - image - 2
DIN rail PLC - M-Duino 58+ - Boot and Work Corp, S.L. - digital input / analog inputs / digital outputs - image - 3
DIN rail PLC - M-Duino 58+ - Boot and Work Corp, S.L. - digital input / analog inputs / digital outputs - image - 4
DIN rail PLC - M-Duino 58+ - Boot and Work Corp, S.L. - digital input / analog inputs / digital outputs - image - 5
DIN rail PLC - M-Duino 58+ - Boot and Work Corp, S.L. - digital input / analog inputs / digital outputs - image - 6
Add to favorites
Compare this product


Characteristics

Type
DIN rail
Input/output
digital input, analog inputs, digital outputs, analog outputs
Network
RS485, RS232, GPRS, Ethernet, LoRaWAN, Bluetooth, WiFi, DALI, TTL
Other characteristics
modular

Description

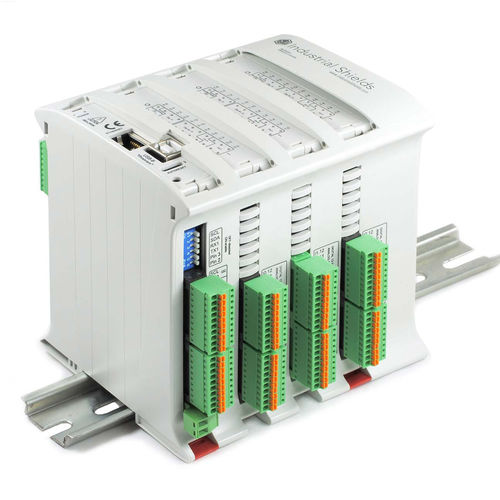

Controller Arduino for Industrial Automation: monitoring, process control and Data Acquisition Modular PLC controller This is the first equipment based on the Arduino technology designed for professional use. This Programmable logic controller has 58I/Os. It also contains several communication ports which provide more flexibility and control. The industrial controller M-DUINO family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc… Programming Software with Open Source This Industrial PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free. Instantaneous connection and coding The Arduino PLC M-DUINO is programmed through the USB ports. This industrial Arduino PLC can also be programmed through Ethernet port remotely. This offers immediate access to the program, maintain and control. Also, you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox PLC Range and the Touchberry Pi with instantaneous connection.

Catalogs

No catalogs are available for this product.

See all of Boot and Work Corp, S.L.‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
