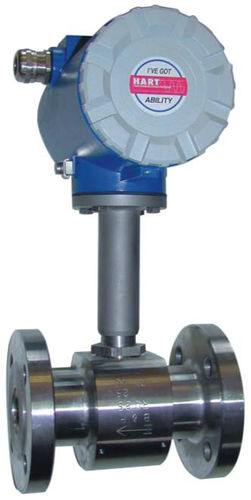

Turbine flow meter 0.15 - 120 m³/h, DN 10 - 65 | RQ series 1volumefor liquidsin-line
Add to favorites
Compare this product
Characteristics
- Technology
- turbine
- Type
- volume
- Fluid
- for liquids
- Installation
- in-line
- Applications
- for custody transfer
- Other characteristics
- with counting function
- Volumetric flow rate
Max.: 120 m³/h
(4,237.76 ft³/h)- Process temperature
Max.: 250 °C
(482 °F)- Process pressure
Max.: 320 bar
(4,641.21 psi)Min.: 16 bar
(232.06 psi)
Description
DN 10 - 65
PN 16 - 320
flow rates 0,15 - 120 m³/h
accuracy ± 0,15 % over a reduced flow range ( for viscosities of 0,2 0,7 mPa·s )
accuracy ± 0,25 - 0,3 for the standard - flow range ( for viscosities of 0,2 0,7 mPa·s )
operating temperature according to design -196°C to +250°C
for custody transfer admitted
