Impact crusher SDK
stationaryfinesecondary

impact crusher
impact crusher
impact crusher
impact crusher
impact crusher
impact crusher
impact crusher
impact crusher
impact crusher
impact crusher
Add to favorites
Compare this product


Characteristics

Technology
impact
Mobility
stationary
Other characteristics
secondary, fine, tertiary
Capacity

Min.: 100 t/h
(61.2 lb/s)

Max.: 600 t/h
(367.4 lb/s)

Motor power

Min.: 160 kW
(217.54 hp)

Max.: 355 kW
(482.67 hp)

Opening height

Min.: 1,100 mm
(43.3 in)

Max.: 1,500 mm
(59.1 in)

Opening lenght

Min.: 1,000 mm
(39.4 in)

Max.: 2,000 mm
(78.7 in)

Weight

Min.: 12,600 kg
(27,778.25 lb)

Max.: 26,000 kg
(57,320.19 lb)

Description

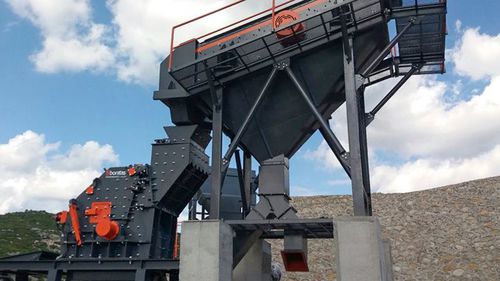

Stationary Impact Crusher SDK Series The Boratas Secondary Impact Crusher is one of our most advised machines due to its high efficiency and reliability. These machines can crush materials such as asphalt or medium and high-hardness concrete aggregates. They are also characterized by a large discharge opening allowing a perfect flow of materials and outstanding crushing. Used in the secondary crushing stage, these machines can produce high-quality products with a cubic shape and desired dimensions which are easily arranged thanks to the hydraulic system. Impact crushers are designed to last a very long time minimizing the need for maintenance while maximizing performance, whether in the primary, secondary, or tertiary stage. A combination of high inertia rotor, wear-resistant materials, and a well-sized crushing chamber defines impact crushers. This combination allows a good production rate while producing fine and high-quality products. The impact crushers are used in all crushing stages showing their importance for Boratas. We recognize that these machines are widely demanded and that our customers expect high quality. This motivated us to produce a machine able to exceed our customers’ expectations. The components of our machines and the materials used are the reason for their low need for maintenance. The robust rotor is made of cast steel, and the blow bars are made of alloyed manganese which strengthens and increases the life span. For More Information Feel Free to Contact US!

VIDEO

Catalogs

No catalogs are available for this product.

See all of Boratas Machinery‘s catalogs
