Hazardous location safety system Protect

protection zone

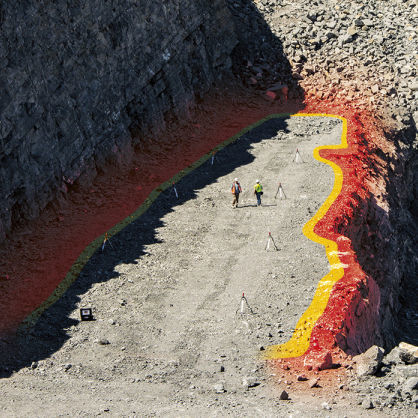

• Automatic marker positioning ➜ set-up in less than a minute. • Speedy establishment of any border • Obstacle detection and rejection • Powerful and fast algorithms • Real-time resilience of marker disappearance (failure, sabotage...). • The purpose is warning the users of our system in the event of hazards (risks of falls from a height, approach of dangerous areas...) To begin with, four markers are randomly placed on site. They will then locate each other. The safety area is then defined with a plotter. Every person found within the area is equipped with our system and wears a TAG. As soon as a person puts himself at risk by approaching the safety area's limit, he is notified by a luminous signal. The marker closest to the user also reacts by sending a luminous signal. The system comes in a suitcase containing 6 Tags, 4 markers and a screen used as the system unit and a data logger. The suitcase is used as a charger for the Tags and the markers.  • Round-the-clock positioning • Positioning across the entire predefined area • UWB radio technology • Indoor and outdoor use • Accuracy of +/- 10 cm > • Positioning in less than 20 ms • Speedy system installation • Real-time resilience of marker disappearance (failure, sabotage...). • Our systems covers a broad range of applications as it can be used in various industries such as quarries, building sites but can also be used to create a protection area around engineering machinery in order to prevent titling and tipping and therefore protecting visitors in the area.
