AC motor Platform 240
synchronous120V690 V

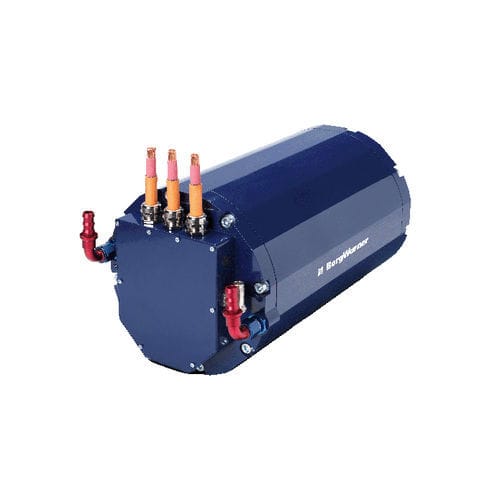

AC motor - Platform 240 - BORG WARNER - synchronous / 120V / 690 V
AC motor - Platform 240 - BORG WARNER - synchronous / 120V / 690 V
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
synchronous
Voltage
120V, 690 V
Protection class
robust
Configuration
permanent magnet, compact
Cooling mechanism
liquid-cooled
Applications
for pump, for compressors, for electric vehicles
Power

Max.: 600 kW
(815.773 hp)

Min.: 100 kW
(135.962 hp)

Torque

Max.: 800 Nm
(590.0497 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Rotational speed

Max.: 15,000 rpm
(94,247.78 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

This motor platform for electromobility is flexible not only in terms of its shape but also in terms of its technical characteristics (scalable from 100 to 600 kW) and can be tailored precisely to the requirements of the application in question, making it a compact and efficient drive system for any hybrid or electric vehicle. This motor is also suitable for the electrification of auxiliary units such as hydraulic pumps or compressors. Its simple design ensures cost-effective series production. It can be easily combined with the SKAI inverter and QUASARTM motor control software to create cost-optimized electric drive trains. System integrators thus have a compact, lightweight, robust and cost-effective class-leading solution package covering traction, hybridization, power generation and subsystem electrification.
