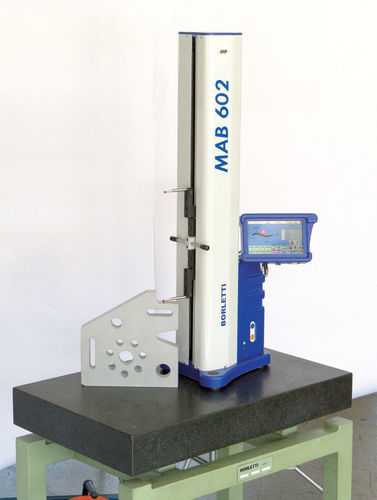

Motorized height gauge MAB 602

MAIN FEATURES State-of-the-art multifunctional measuring system with a touch screen colour LCD display, 7”, featuring an intuitive, fast and ease-of-use alphanumeric and graphic readout to process measurements and advanced geometrical calculations. Carriage for motorized vertical displacement. Fast sliding movements on air bearings allowing greater accuracy and reliability. Constant minimized measuring force with consequent optimization of the measurements performed by means of extended probes. Automatic stand-by for energy saving. USB/LAN port to import or export data and measuring programs. Automatic software updates via USB Pendrive. RS232 port for connection to printer or other external devices. Calibration master piece including 5 mm gauge block as standard supply. Built according to CE directives FUNCTIONS Automatic processing of 1D and 2D measurements. Calculation of tolerances of the performed measurements. Extensive statistical evaluations with automatic storage of the detected values. One key function to start measurement procedures automatically. Self-learning of measuring sequences, creation, storage and recall of measuring programs. Possibility to set an unlimited number of reference points on the workpiece. Perpendicularity and straightness measurements by means of the optional kit code KMRP. System software and operational menus available in various languages. Automatic temperature compensation. Automatic compensation of the measurements performed either in floating or static mode. Non-linear error compensation (SLEC) and angular deviation. Probe flexion error compensation.
