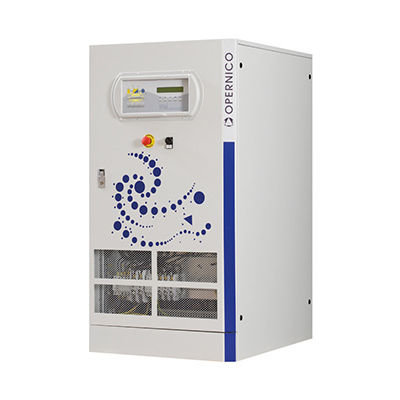

Solar DC/AC inverter Copernico TT

medium-voltagehigh-voltagelow-voltage

Description Applications • LV photovoltaic power plants • MV/HV photovoltaic power plants • Stand alone photovoltaic power plants with energy storage system • Grid connected photovoltaic power plants with energy storage system • Hybrid power generation station • Peak shaving • Load balancing • Time shifting Benefits High reliability • Longer time between maintenance activities • Reduction of energy production losses due to inverter failure High efficiency • Some competitors declare only the maximum efficiency • Copernico’s efficiency is measured in the real operating conditions with all the auxiliary circuit connected Low current distortion • Competitor’s average values are in the range 3–4% • Lower current distortion leads to a general reduction of the energy losses in conductors and transformers Features Wide MPPT range • One of the widest (370Vdc) among inverter manufacturers • The energy production of the PV array is maximised High output voltage in TL series (300 Vac) • Competitor’s average values 270–280 Vac y • Higher voltage = Lower current • Smaller AC cables and circuit breakers Simplified installation • Single mechanical structure up to 500 kW • Space saving thanks to: • Small foot-print for all the range • Reduced installation clearances Wide range availability of accessories for PV plants • Array Monitor (stings boxes) • Green Power Guardian (monitoring System) • PV sensors to measure environmental temperature, PV panel temperature, solar radiation
