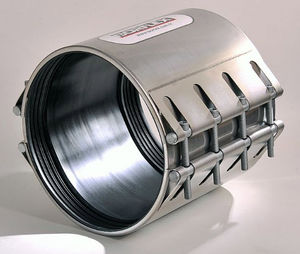

Coupling with clamp REP-BR flange
Add to favorites
Compare this product
Characteristics
- Construction
- with clamp
- Installation system
- flange
Description
NOMINAL DIAMETER :
DN 76,1 mm DN 4000 mm
Branşman Ölçüsü
DN 15- DN 100 mm
USAGE AREAS
STEEL
GRP
HDPE-100
PVC
CAST-IRON
DUCTILE FONT
ACP
Body:
AISI 304 AISI 304 STAINLESS STEEL
*AISI 316L AISI 304 STAINLESS STEEL
*AISI 1024 AISI 1024 GALVANIZED STEEL
Gasket:
EPDM (Water , waste water, air , solids and chemical products are used)
*NBR (Water, Gas, Oil , etc. are used in the petroleum hydrocarbon.)
