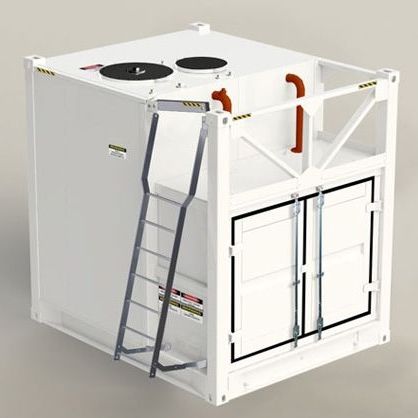

Sump tank T-Serial

for watercontainercontainment

Note (1) Standard SFL is set at 90% of gross volume with standard float type overfill valve. Options available to increase Safe Fill Level to 95% - refer overfill options. T-Serial Tank ◆ Self bunded with internal tank and external bund. ◆ Corner container lock castings. ◆ Internal ladder for access. ◆ Three 600mm manholes. ◆ Air breather vents for free venting. ◆ Containment compartment (internal bund) with emergency vent. ◆ Calibrated contents dip stick. ◆ Interstitial space dip stick. ◆ Top roof section designed to release water as it sits above the side rails of the tank. ◆ Lockable top sump for access points. ◆ Additional sockets,doubler pad points available to suit applications. ◆ Unit sand blasted to as2.5 ◆ Underside of the base bitumen coated for protection. ◆ Paint coating to c5-1 harsh environment standard, three coats Hempel paint to 240 micron thickness. ◆ Statutory signage to suit end use location. ◆ Tank manufacture and compliance plates.
