Gasoline refueling station LNG

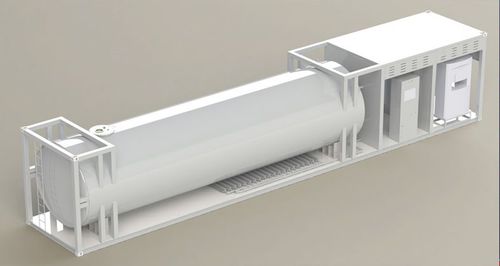

INTRODUCTION Main design parameters Applicable medium: LNG Maximum flow: Single pump12000L/h Double pump24000L/h Maximum working pressure: 1.6MPa Pipe temperature: -196℃~55℃ Ambient temperature：-25℃~55℃ Working power supply: Three-phase AC380V/220V,50Hz Maximum power: Single pump< =20KW Double pump =120L/min LNG utilization ratio: 95% Product description Skid station: tank, pump skid, carburetor, filling machine assembly in a sled, It can be convenient to transport station It has: Filling function: The LNG in the tank is pumped out by the LNG low temperature pump. through the filling machine to the car. Unloading function: The LNG low temperature pump will unloading the LNC in the tank wagon to the LNG tank. The pressurization function: after unloading, part of the LNG storage tank through the LNG vaporizing pressure regulating after into the tank. When the tank pressure reaches the set pressure stop gasification. Temperature adjustment function: after unloading, Using LNG low temperature pump to extract part of LNG from storage tank, After entering the tank through the LNG temperature controller, When the tank temperature reaches the set temperature then it stop.
