Test control system IPC series

injection pumpfor automotive applications

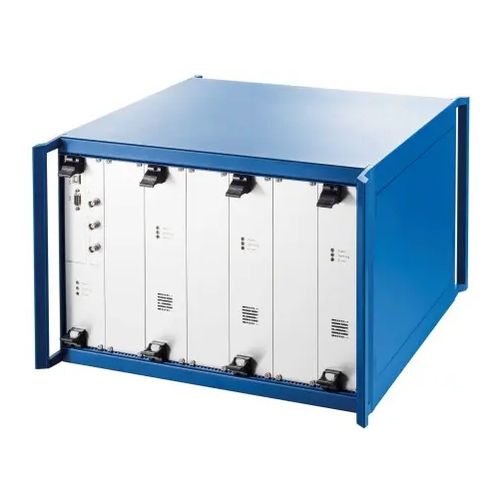

The operation of common-rail systems under test conditions takes high demands to measuring and testing technology regarding the reproducibility and reliability. The IPC product family from Bosch Engineering GmbH was specially designed for development, endurance testing and quality assurance. Due to different fields of applications it is possible that the IPC runs with single components of common-rail systems, such as high-pressure pumps, as well as entire common-rail systems including injectors and actuators of the high-pressure control circuit. IPC test control units are modular build of a control unit and power stage unit, and therefore enable adaption to the respective test requirements. The wiring harness included in the scope of delivery connects the sensors and actuators of the common-rail system with the test control unit. The scope of delivery also includes PC software that serves as a graphic configuration and operation interface. Communication with the test control unit takes place via a USB connection or CAN interface. Test control system IPC-400 / IPC-450P • Drive and control of complete common rail systems, including rail pressure control • Modular system design, scalable number of solenoid / piezo power stages • Parallel operation of six solenoid / piezo power stages, freely configurable • Integrated diagnostics functionality • Overvoltage protection and overcurrent shutdown • 8 - 28 V operation • User-friendly calibration software • Integrated measurement data acquisition • CAN interface for remote operation • CE compliant
