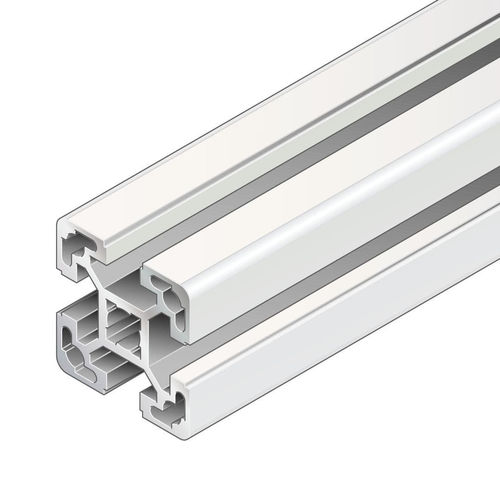

Aluminum profile 3842529339
rectangularindustrialopen

aluminum profile
aluminum profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Configuration
rectangular
Applications
industrial
Other characteristics
open
Width

40 mm
(1.575 in)

Height

40 mm
(1.575 in)

Description

Modular dimension [mm] - 40 Cross-section - 40x40L Profile slot - 10 Open slots - 4 Profile type - Standard Length [Lmax] [mm] - 6070 Delivery unit - 20 Moment of resistance in the x-direction [Wx] [cm³] - 4.5 Area moment of inertia in x-direction [lx] [cm⁴] - 9.1 Profile surface [A] [cm²] - 5.6 Product description - 40x40L -/- Mass [m] [kg] - 1.5 Torsional moment of inertia [It] [cm⁴] - 1.3 Area moment of inertia in y-direction [ly] [cm⁴] - 9.1 Moment of torsion resistance [Wt] [cm³] - 0.74 Recommended accessories - Cover cap 40x40, signal gray,Cover cap 40x40, black,Cover cap with hole 40x40, signal gray,Cover cap with hole 40x40, black Moment of resistance in the y-direction [Wy] [cm³] - 4.5 Weight [kg] - 218
