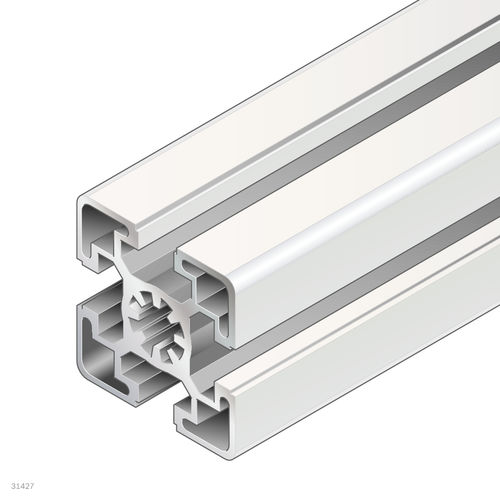

Aluminum profile 3842553614

rectangularindustrialopen

Modular dimension [mm] - 45 Cross-section - 45x45 Profile slot - 10 Open slots - 4 Profile type - Standard Length [Lmax] [mm] - 6070 Delivery unit - 20 Moment of resistance in the x-direction [Wx] [cm³] - 6.1 Area moment of inertia in x-direction [lx] [cm⁴] - 13.8 Profile surface [A] [cm²] - 7.5 Product description - 45x45 -/- Mass [m] [kg] - 2 Torsional moment of inertia [It] [cm⁴] - 2.65 Area moment of inertia in y-direction [ly] [cm⁴] - 13.8 Moment of torsion resistance [Wt] [cm³] - 0.96 Recommended accessories - Cover cap 45x45, signal gray,Cover cap 45x45, black,Cover cap with hole 45x45, signal gray,Cap with hole 45x45, black Moment of resistance in the y-direction [Wy] [cm³] - 6.1 Weight [kg] - 248
