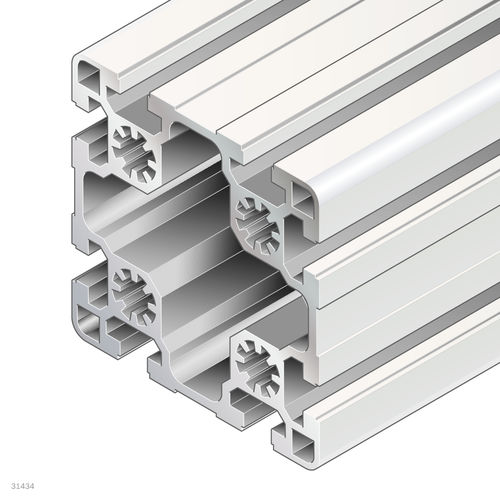

Anodized aluminum profile 3842553613

rectangularindustrialopen

Profile slot 10 Open slots 8 Profile type Standard ESD yes Color Natural Delivery unit 6 Area moment of inertia in y-direction [ly] [cm⁴] 211.1 Moment of resistance in the y-direction [Wy] [cm³] 46.9 Area moment of inertia in x-direction [lx] [cm⁴] 211.1 Moment of torsion resistance [Wt] [cm³] 20.1 Moment of resistance in the x-direction [Wx] [cm³] 46.9 Torsional moment of inertia [It] [cm⁴] 82.1 Length [L] 6070 Mass [m] 6.5 Profile surface [A] [cm²] 24.1 Profile adaption M12: in all core holes,D17: in slots C/H, D/G,D17V: in slots A/F, B/E,LF: in slots C/H, D/G Recommended accessories Cover cap 90x90L, black,Cover cap 90x90L, signal gray Weight [kg] 256
