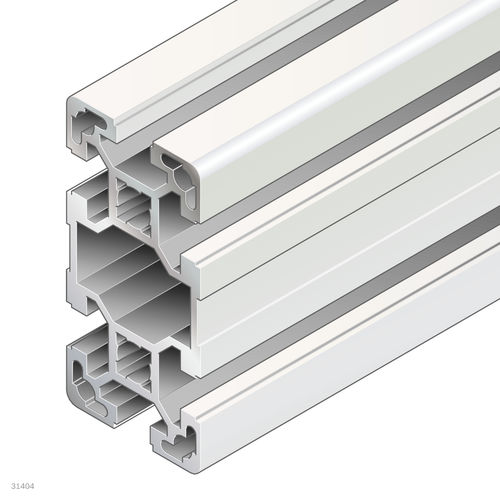

Aluminum profile 3842529341

rectangularindustrialopen

Modular dimension [mm] - 40 Cross-section - 40x80L Profile slot - 10 Open slots - 6 Profile type - Standard Length [Lmax] [mm] - 6070 Delivery unit - 12 Moment of resistance in the x-direction [Wx] [cm³] - 15.9 Area moment of inertia in x-direction [lx] [cm⁴] - 63.4 Profile surface [A] [cm²] - 9.9 Product description - 40x80L -/- Mass [m] [kg] - 2.7 Torsional moment of inertia [It] [cm⁴] - 8.02 Area moment of inertia in y-direction [ly] [cm⁴] - 17.3 Moment of torsion resistance [Wt] [cm³] - 4.8 Recommended accessories - Cover cap 40x80, signal gray,Cover cap 40x80, black,Cover cap with hole 40x80, signal gray,Cover cap with hole 40x80, black Moment of resistance in the y-direction [Wy] [cm³] - 8.7 Weight [kg] - 220
