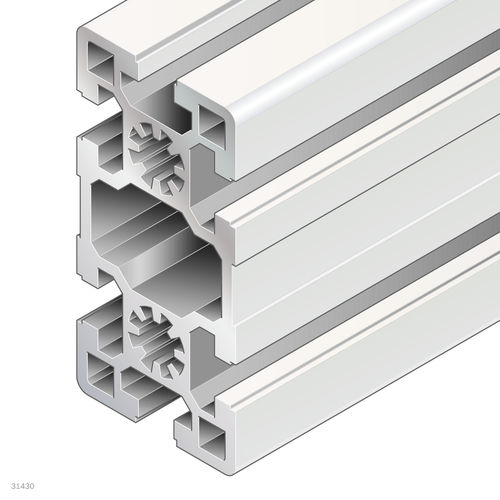

Anodized aluminum profile 3842553615

rectangularindustrialopen

Profile slot 10 Open slots 6 Profile type Standard ESD yes Color Natural Delivery unit 12 Area moment of inertia in y-direction [ly] [cm⁴] 32.8 Moment of resistance in the y-direction [Wy] [cm³] 14.6 Area moment of inertia in x-direction [lx] [cm⁴] 124.6 Moment of torsion resistance [Wt] [cm³] 6.61 Moment of resistance in the x-direction [Wx] [cm³] 27.7 Torsional moment of inertia [It] [cm⁴] 15.4 Length [L] 6070 Mass [m] 4.2 Profile surface [A] [cm²] 15.4 Profile adaption M12, M16: in all core holes,D17: in slots B/F, C/E,D17V: in slots A/D Recommended accessories Cover cap 45x90, black,Cover cap 45x90, signal gray,Cover cap with hole 45x90, black,Cover cap with hole 45x90, signal gray Weight [kg] 307
