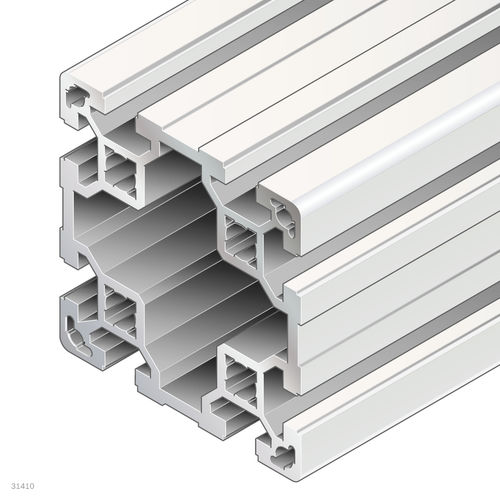

Aluminum profile 3842529347

rectangularindustrialopen

Profile slot - 10 Modular dimension [mm] - 40 Open slots - 8 Profile type - Standard Length [Lmax] [mm] - 6070 Delivery unit - 6 Moment of resistance in the x-direction [Wx] [cm³] - 33 Area moment of inertia in y-direction [ly] [cm⁴] - 132.1 Area moment of inertia in x-direction [lx] [cm⁴] - 132.1 Moment of resistance in the y-direction [Wy] [cm³] - 33 Moment of torsion resistance [Wt] [cm³] - 17.2 Torsional moment of inertia [It] [cm⁴] - 59.8 Profile surface [A] [cm²] - 18.2 Product description - 80x80L -/- Recommended accessories - Cover cap 80x80, signal gray,Mounting hole plug 80x80, black Mass [m] [kg] - 4.9 Compatible size Varioflow - 160,240,320 Weight [kg] - 200
