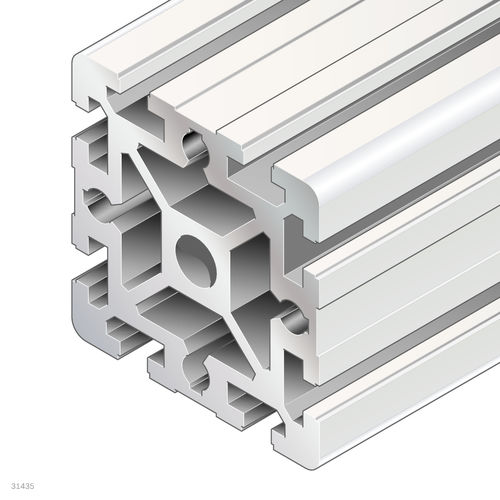

Aluminum profile 3842557201

rectangularindustrialopen

Modular dimension [mm] - 45 Profile slot - 10 Open slots - 8 Profile type - Standard Length [Lmax] [mm] - 6070 Delivery unit - 6 Moment of resistance in the x-direction [Wx] [cm³] - 66.7 Area moment of inertia in x-direction [lx] [cm⁴] - 299.8 Profile surface [A] [cm²] - 38.4 Product description - 90x90 -/- Mass [m] [kg] - 10.4 Torsional moment of inertia [It] [cm⁴] - 118.6 Area moment of inertia in y-direction [ly] [cm⁴] - 299.8 Moment of torsion resistance [Wt] [cm³] - 26 Recommended accessories - Cover cap 90x90, black ESD,Cover cap 90x90, signal gray,Cover cap with hole 90x90, black ESD,Cover cap with hole 90x90, signal gray Moment of resistance in the y-direction [Wy] [cm³] - 66.7 Weight [kg] - 398
