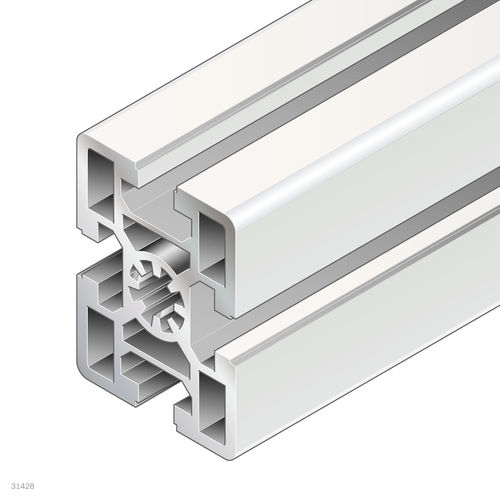

Aluminum profile 3842557200
rectangularindustrialopen

aluminum profile
aluminum profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Configuration
rectangular
Applications
industrial
Other characteristics
open
Width

45 mm
(1.772 in)

Height

60 mm
(2.362 in)

Description

Modular dimension [mm] - 45 Profile slot - 10 Open slots - 4 Profile type - Standard Length [Lmax] [mm] - 6070 Delivery unit - 20 Moment of resistance in the x-direction [Wx] [cm³] - 12.4 Area moment of inertia in x-direction [lx] [cm⁴] - 37.2 Profile surface [A] [cm²] - 11 Product description - 45x60 -/- Mass [m] [kg] - 3 Torsional moment of inertia [It] [cm⁴] - 6.7 Area moment of inertia in y-direction [ly] [cm⁴] - 22.7 Moment of torsion resistance [Wt] [cm³] - 4.09 Recommended accessories - Cover cap 45x60, black ESD,Cover cap 45x60, signal gray,Cover cap with hole 45x60, black ESD,Cover cap with hole 45x60, signal gray Moment of resistance in the y-direction [Wy] [cm³] - 10.1 Weight [kg] - 380
