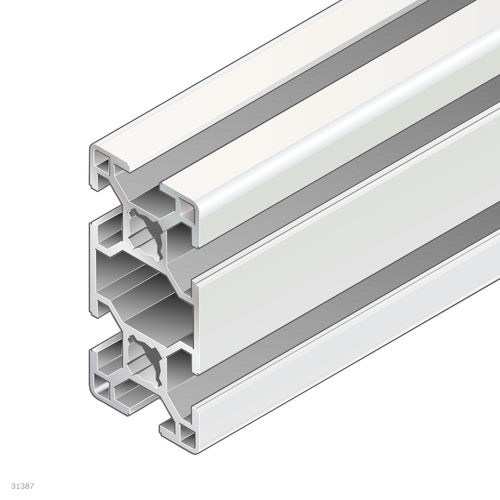

Anodized aluminum profile 3842557205

rectangularindustrialopen

Profile slot 8 Open slots 6 Profile type Standard Color Natural Delivery unit 10 Moment of torsion resistance [Wt] [cm³] 2.1 Area moment of inertia in y-direction [ly] [cm⁴] 5.1 Moment of resistance in the y-direction [Wy] [cm³] 3.9 Area moment of inertia in x-direction [lx] [cm⁴] 19.6 Profile adaption M8: in all core holes,D11: in slots B/F, C/E,D11V: in slots A/D Length [L] 6070 Profile surface [A] [cm²] 5.5 Mass [m] 1.5 Torsional moment of inertia [It] [cm⁴] 2.6 Moment of resistance in the x-direction [Wx] [cm³] 7 Recommended accessories Cover cap 30x30, signal gray,Cover cap 30x60, signal gray,Cover cap 30x30, black ESD,Cover cap 30x60, black ESD,Cover cap with hole 30x30, signal gray,Cover cap with hole 30x30, black ESD Weight [kg] 103
