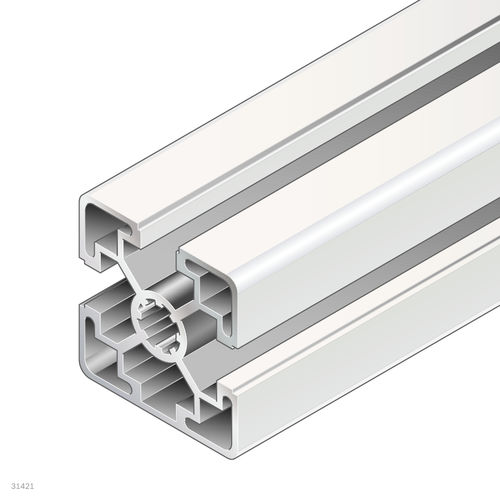

Aluminum profile 3842557225
rectangularindustrialopen

aluminum profile
aluminum profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Configuration
rectangular
Applications
industrial
Other characteristics
open
Width

45 mm
(1.772 in)

Height

45 mm
(1.772 in)

Description

Profile slot - 10 Open slots - 3 Profile type - 3N Length [Lmax] [mm] - 6070 Delivery unit - 20 Moment of resistance in the x-direction [Wx] [cm³] - 5.4 Area moment of inertia in x-direction [lx] [cm⁴] - 12.6 Profile surface [A] [cm²] - 6.2 Product description - 45x45L 3N -/- Mass [m] [kg] - 1.7 Torsional moment of inertia [It] [cm⁴] - 3.4 Area moment of inertia in y-direction [ly] [cm⁴] - 11.7 Moment of torsion resistance [Wt] [cm³] - 2.4 Recommended accessories - Cover cap 45x45, black ESD,Cover cap 45x45, signal gray,Cap with hole 45x45, black ESD,Cover cap with hole 45x45, signal gray Moment of resistance in the y-direction [Wy] [cm³] - 5.2 Weight [kg] - 217.1

Catalogs

No catalogs are available for this product.

See all of Bosch Rexroth - Assembly Technology‘s catalogs

Other Bosch Rexroth - Assembly Technology products

Profiles
