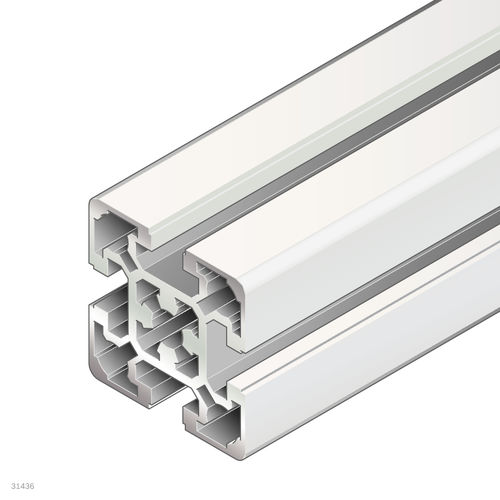

Aluminum profile 3842529351

rectangularindustrialopen

Profile slot - 10 Open slots - 4 Profile type - Standard Length [Lmax] [mm] - 6070 Delivery unit - 20 Moment of resistance in the x-direction [Wx] [cm³] - 8.5 Area moment of inertia in x-direction [lx] [cm⁴] - 21.2 Profile surface [A] [cm²] - 9.3 Product description - 50x50L -/- Mass [m] [kg] - 2.5 Torsional moment of inertia [It] [cm⁴] - 5.37 Area moment of inertia in y-direction [ly] [cm⁴] - 21.2 Moment of torsion resistance [Wt] [cm³] - 4.3 Recommended accessories - Cover cap 50x50, black,Cover cap 50x50, signal gray,Cover cap with hole 50x50, black,Cover cap with hole 50x50, signal gray Moment of resistance in the y-direction [Wy] [cm³] - 8.5 Weight [kg] - 316
