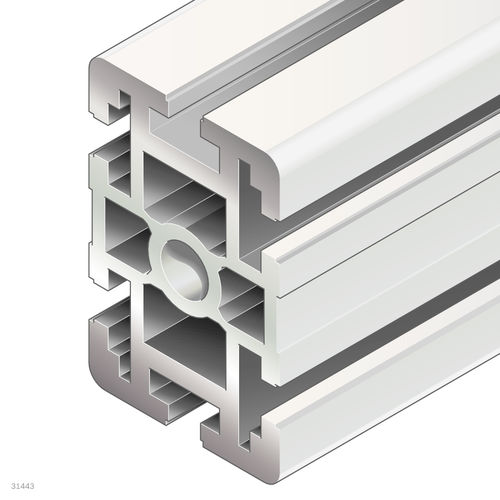

Aluminum profile 3842557207
rectangularindustrialopen

aluminum profile
aluminum profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Configuration
rectangular
Applications
industrial
Other characteristics
open
Width

60 mm
(2.362 in)

Height

90 mm
(3.543 in)

Description

Profile slot - 10 Open slots - 6 Profile type - Standard Length [Lmax] [mm] - 6070 Delivery unit - 10 Torsional moment of inertia [It] [cm⁴] - 45.8 Moment of resistance in the x-direction [Wx] [cm³] - 47.6 Area moment of inertia in x-direction [lx] [cm⁴] - 214.2 Profile surface [A] [cm²] - 25.8 Mass [m] [kg] - 7 Area moment of inertia in y-direction [ly] [cm⁴] - 90.5 Moment of resistance in the y-direction [Wy] [cm³] - 30.2 Moment of torsion resistance [Wt] [cm³] - 18 Recommended accessories - Cover cap 60x90, black ESD,Cover cap 60x90, signal gray,Cover cap with hole 60x90, black ESD,Cover cap with hole 60x90, signal gray Product description - 60x90 -/- Weight [kg] - 443
