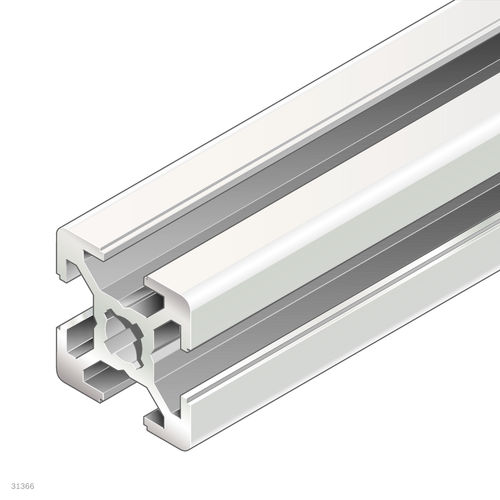

Aluminum profile 3842517179
rectangularindustrialopen

aluminum profile
aluminum profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Configuration
rectangular
Applications
industrial
Other characteristics
open
Width

20 mm
(0.787 in)

Height

20 mm
(0.787 in)

Description

Profile slot - 6 Open slots - 4 Profile type - Standard Length [Lmax] [mm] - 3000 Delivery unit - 20 Moment of resistance in the x-direction [Wx] [cm³] - 0.7 Area moment of inertia in x-direction [lx] [cm⁴] - 0.7 Profile surface [A] [cm²] - 1.6 Product description - 20x20 -/- Mass [m] [kg] - 0.4 Torsional moment of inertia [It] [cm⁴] - 0.08 Area moment of inertia in y-direction [ly] [cm⁴] - 0.7 Moment of torsion resistance [Wt] [cm³] - 0.17 Recommended accessories - Cover cap 20x20, signal gray,Cover cap 20x20, black Moment of resistance in the y-direction [Wy] [cm³] - 0.7 Weight [kg] - 34
