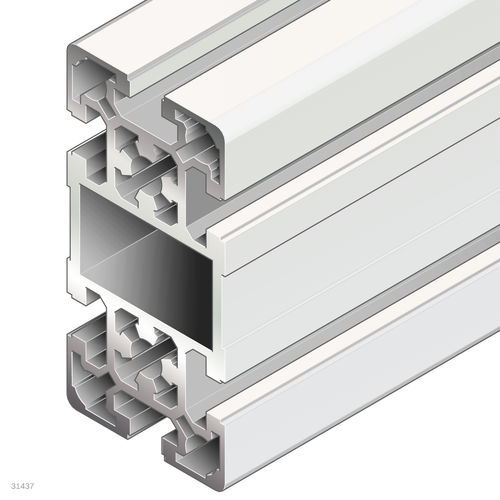

Aluminum profile 3842537825
rectangularindustrialopen

aluminum profile
aluminum profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Configuration
rectangular
Applications
industrial
Other characteristics
open
Width

50 mm
(1.969 in)

Height

100 mm
(3.937 in)

Description

Profile slot - 10 Open slots - 6 Profile type - Standard Length [Lmax] [mm] - 6070 Delivery unit - 10 Moment of resistance in the x-direction [Wx] [cm³] - 32.6 Area moment of inertia in x-direction [lx] [cm⁴] - 162.8 Profile surface [A] [cm²] - 17.2 Product description - 50x100L -/- Mass [m] [kg] - 4.6 Torsional moment of inertia [It] [cm⁴] - 29.43 Area moment of inertia in y-direction [ly] [cm⁴] - 42.6 Moment of torsion resistance [Wt] [cm³] - 10.7 Recommended accessories - Cover cap 50x50, black,Cover cap 50x50, signal gray,Cover cap with hole 50x50, black,Cover cap with hole 50x50, signal gray Moment of resistance in the y-direction [Wy] [cm³] - 17 Weight [kg] - 298
