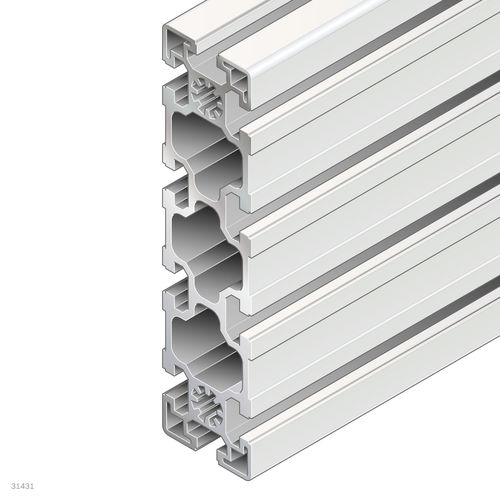

Aluminum profile 3842553616
rectangularindustrialopen

aluminum profile
aluminum profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Configuration
rectangular
Applications
industrial
Other characteristics
open
Width

45 mm
(1.772 in)

Height

180 mm
(7.087 in)

Description

Profile slot - 10 Open slots - 10 Profile type - Standard Length [Lmax] [mm] - 6070 Delivery unit - 6 Moment of resistance in the x-direction [Wx] [cm³] - 85.2 Area moment of inertia in x-direction [lx] [cm⁴] - 766.7 Profile surface [A] [cm²] - 25.5 Product description - 45x180 -/- Mass [m] [kg] - 6.9 Torsional moment of inertia [It] [cm⁴] - 44.4 Area moment of inertia in y-direction [ly] [cm⁴] - 57.3 Moment of torsion resistance [Wt] [cm³] - 17 Recommended accessories - Cover cap 45x180, signal gray,Cover cap 45x180, black Moment of resistance in the y-direction [Wy] [cm³] - 25.5 Weight [kg] - 273.6
