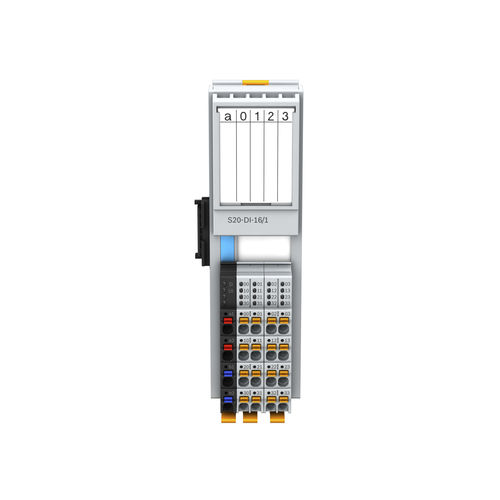

Digital input module S20-DI-16/1

PROFIBUS16 digital inputsDIN rail

Digital input module, 16 inputs, 24 V DC, 1-conductor connection technique Individually combinable modules Innovative assembly and installation concept Connection type - Push-in Connectivity technology - 1-wire technique Width [mm] - 35 Height [mm] - 54 Depth [mm] - 126.1 Process data update [µs] 100 Signal voltage "0" [V] - -3-5 Signal voltage "1" [V] - 11-30 Nominal input voltage [V DC] - 24 Logic voltage UBus [V DC] - 5 Conductor cross-section - rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16 Permissible air humidity (storage) [ - 5-95 Permissible air humidity (transport) [ 5-95 Ambient temperature (storage and transport) [°C] - -40-85 Ambient temperature (during operation) [°C] -25-60 Air pressure (operation) 70-106 kPa (up to 3,000 m above sea level) Air pressure (storage / transport) - 70-106 kPa (up to 3,000 m above sea level) Weight [kg] - 0.19
