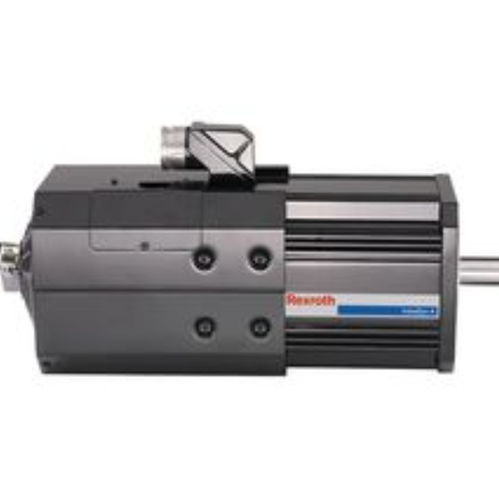

AC servo motor MAD series

asynchronousIP65forced ventilation

The high power density predestines the MAD motor series for applications in machine tools and printing machines as well as in metal forming. Fine-resolution encoder systems in single-turn or multi-turn design as well as outstanding radial runout ensure maximum machining precision. In addition to options such as keyway and holding brake, these motors are also available with special bearings for high-speed applications or for applications with increased radial loads. The motor degree of protection IP65 includes the blower motor and thus enables use even in rough industrial environments. The service-friendly motor design even allows easy fan replacement while the motor is running – particularly interesting in the printing industry. Asynchronous servo motor MAD100 Rated power PN 13.1 kW Maximum speed nmax 11000 rpm Single-turn, multi-turn, absolute and incremental encoders High protection type IP65, including fan motor Service-friendly motor design Asynchronous servo motor MAD130 Rated power PN 31.4 kW Maximum speed nmax 10000 rpm Single-turn, multi-turn, absolute and incremental encoders High protection type IP65, including fan motor Service-friendly motor design Asynchronous servo motor MAD160 Rated power PN 44 kW Maximum speed nmax 8000 rpm Single-turn, multi-turn, absolute and incremental encoders High protection type IP65, including fan motor Service-friendly motor design Asynchronous servo motor MAD180 Rated power PN 62.8 kW Maximum speed nmax 6000 rpm Single-turn, multi-turn, absolute and incremental encoders High protection type IP65, including fan motor Service-friendly motor design
