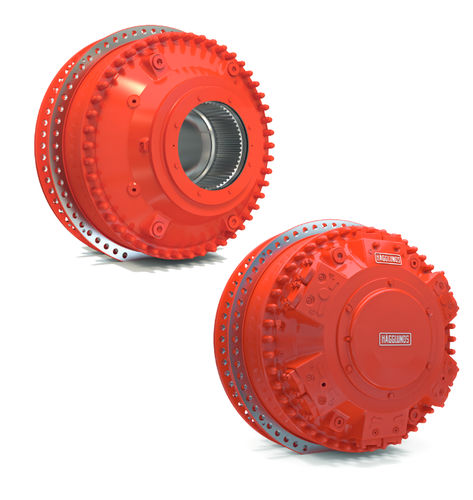

Radial piston hydraulic motor Hägglunds CBm
high-torquewith groovewith shaft couplings

Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 2
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 3
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 4
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 5
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 6
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 7
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 8
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 9
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 10
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 11
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 12
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 13
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 14
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 15
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 16
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 17
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 18
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 19
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 20
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 21
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 22
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 23
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 24
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 25
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 26
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 27
Radial piston hydraulic motor - Hägglunds CBm - Bosch Rexroth Hägglunds - high-torque / with groove / with shaft couplings - image - 28
Add to favorites
Compare this product


Characteristics

Technology
radial piston
Other characteristics
high-torque, with groove, with shaft couplings
Pressure

Min.: 0 bar
(0 psi)

Max.: 350 bar
(5,076 psi)

Rotational speed

Min.: 22 rpm
(138.23 rad.min-1)

Max.: 70 rpm
(439.82 rad.min-1)

Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 1,970,000 Nm
(1,452,997.43 ft.lb)

Displacement

Min.: 63,108 cm³
(2,133.94 US fl oz)

Max.: 380,178 cm³
(12,855.35 US fl oz)

Description

▶ Power range: up to 2393 kW ▶ Frame size: 2000, 3000, 4000, 5000 and 600 ▶ Specific torque: 1000 to 6 000 Nm/bar [50 853 to 305 119 ft-lbs/1000 psi] Features ▶ High power density ▶ Energy efficient ▶ Flexible, many sizes, few mechanical interfaces. ▶ Insensitive for shock loads ▶ Very low moment of inertia ▶ Small footprint (total occupied volume) ▶ Freewheeling possibility ▶ Through hole diameter 270 mm ▶ Tandem mounting possibilty ▶ Version with shrink disc coupling available for CBM 2000 to CBM 3000, which gives direct and easy retrofit for Hägglunds MB 1600 and MB 2400 motors
