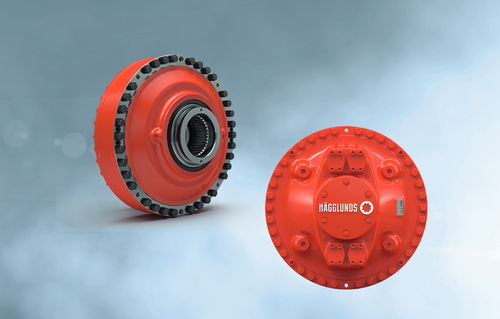

Radial piston hydraulic motor Hägglunds Quantumhigh-torquewith groovewith shaft couplings
Add to favorites
Compare this product
Characteristics
- Technology
- radial piston
- Other characteristics
- high-torque, with groove, with shaft couplings
- Pressure
Min.: 0 bar
(0 psi)Max.: 350 bar
(5,076 psi)- Rotational speed
Min.: 27 rpm
(169.65 rad.min-1)Max.: 125 rpm
(785.4 rad.min-1)- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 370,000 Nm
(272,898 ft.lb)- Displacement
Min.: 15,100 cm³
(510.59 US fl oz)Max.: 70,400 cm³
(2,380.51 US fl oz)
Description
• Power range: up to 1000 kW
• Frame size: 280, 400, 560, 840 and 1120
• Specific torque: 240 to 1120 Nm/bar
[12 200 to 56 900 ft-lbs/1 000 psi]
FEATURES
• High power density
• High energy efficiency
• Flexible, many sizes, few mechanical interfaces
• Insensitive for shock loads
• Very low moment of inertia
• Small footprint (total occupied volume)
• Freewheeling possibility
• Through hole diameter up to 110 mm
