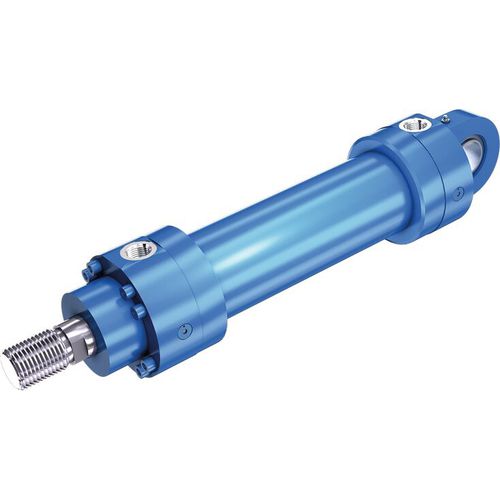

Hydraulic cylinder C seriesdifferentialcylinderpiston
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston, with piston rod, cylinder, differential
- Norms
- ISO
- Other characteristics
- standard, round, with adjustable cushions, flange, flat, trunnion, self-aligning
- Stroke
Min.: 0 mm
(0 in)Max.: 6,000 mm
(236.22 in)- Bore
Min.: 40 mm
(1.57 in)Max.: 320 mm
(12.6 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 250 bar
(3,625.9 psi)- Rod diameter
Min.: 22 mm
(1 in)Max.: 220 mm
(9 in)- Force
Min.: 10 kN
Max.: 1,060 kN
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0.3 m/s
(0.98 ft/s)- Ambient temperature
Min.: -25 °C
(-13 °F)Max.: 80 °C
(176 °F)
Description
Hydraulic cylinder in mill type design, configurable online, with piston rod on one side.
Automated provision of configuration-specific dimensional drawing and 3D data.
Service-oriented modular system
16 types of mounting
6 types of mounting
Self-adjusting and adjustable end position damping
Patented safety vent for easy and safe bleeding
Easy assembly thanks to freely selectable position of the line connections at cylinder head and cylinder base
Catalogs
No catalogs are available for this product.
See all of Bosch Rexroth - Industrial Hydraulics‘s catalogsOther Bosch Rexroth - Industrial Hydraulics products
Mill type cylinder
