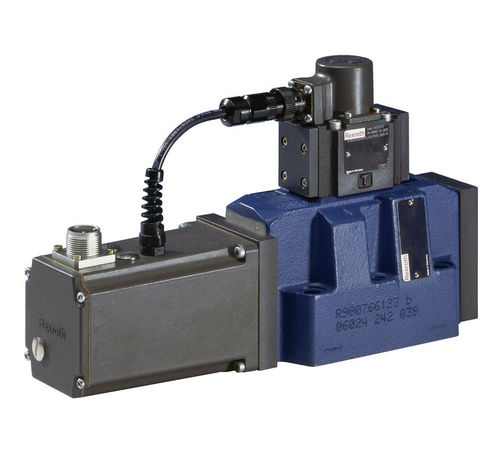

Industrial hydraulic valve in a high performance range. Reliable and quick control of the direction of the oil flow according to hydraulic symbol. High accuracy thanks to internal piston position feedback
Spool valve
Pilot-operated
Connection diagram - ISO 4401-07-07-0-05
Spool symbol - Symbol V
Type of connection - Subplate mounting
Size - 16
Type of actuation - Electrical with integrated electronics
Number of ports - 4
Number of switching positions - 3
Supply voltage - 24 V DC
Electrical connector - Connector 7-pole (6 + PE)
Electrical connection description - Connector 7-pole (6 + PE) according to EN 175201-804
Connectivity - Analog, command value ±10 V
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Seals - FKM
Connection diagram NFPA - NFPA T3.5.1 R2-2002 D07
Size_CETOP - D07
Weight [kg] - 9.36
