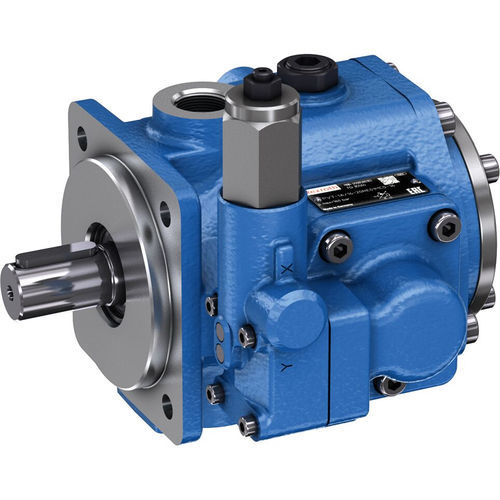

Hydraulic rotary vane pump PV7-1X/10-14RE01MC0-16
cast ironfor industrial applicationswith seal

Hydraulic rotary vane pump - PV7-1X/10-14RE01MC0-16 - Bosch Rexroth - Industrial Hydraulics - cast iron / for industrial applications / with seal

Add to favorites

Compare this product

Characteristics

Type

rotary vane

Material

cast iron

Applications

for industrial applications

Other characteristics

low-noise, open, combined, with seal

Pressure

Max.: 160 bar
(2,321 psi)

Min.: 0 bar
(0 psi)

Flow rate

Max.: 25.2 l/min
(6.66 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Speed

1,450 rpm
(9,111 rad.min-1)

Weight

12.1 kg
(26.68 lb)

Fluid viscosity

0.8 m²/s

Fluid temperature

Max.: 70 °C
(158 °F)

Min.: -10 °C
(14 °F)

Power

5.8 kW, 6.3 kW
(7.89 hp, 8.57 hp)

Description

Variable displacement pump, size 14 cm³, pressure 160 bar for industrial applications, open circuit High reliability in industrial use. Low noise and pulsation level. Precise control behavior thanks to low hysteresis with high repetition accuracy. Can be combined flexibly with other Rexroth pumps. Rotary vane variable displacement pump For industrial applications with open control loop With NBR seals Cast iron housing Displacement type - variable Size [cm³] - 14 Through-drive - with Direction of rotation - clockwise rotation Hydraulic fluid - HLP,HLPD,HVLP,HVLPD
