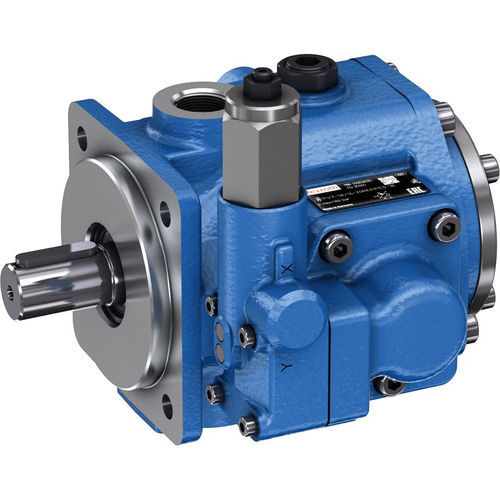

Cast iron hydraulic pump PV7-1X/16-20RE01MC0-16
for industrial applicationslow-noiseopen

Cast iron hydraulic pump - PV7-1X/16-20RE01MC0-16 - Bosch Rexroth - Industrial Hydraulics - for industrial applications / low-noise / open

Add to favorites

Compare this product

Characteristics

Material

cast iron

Applications

for industrial applications

Other characteristics

low-noise, open, with seal, combined

Pressure

Max.: 160 bar
(2,321 psi)

Min.: 0 bar
(0 psi)

Flow rate

Max.: 36 l/min
(9.51 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Speed

1,450 rpm
(9,111 rad.min-1)

Weight

15.5 kg
(34.17 lb)

Fluid viscosity

0.8 m²/s

Fluid temperature

Max.: 70 °C
(158 °F)

Min.: -10 °C
(14 °F)

Power

6.8 kW, 8.5 kW
(9.25 hp, 11.56 hp)

Description

Variable displacement pump, size 20 cm³, pressure 160 bar for industrial applications, open circuit High reliability in industrial use. Low noise and pulsation level. Precise control behavior thanks to low hysteresis with high repetition accuracy. Can be combined flexibly with other Rexroth pumps. For industrial applications with open control loop Displacement type - variable Size [cm³] - 20 Through-drive - with Direction of rotation - clockwise rotation Hydraulic fluid - HLP,HLPD,HVLP,HVLPD Seals - NBR Weight [kg] - 15.5
