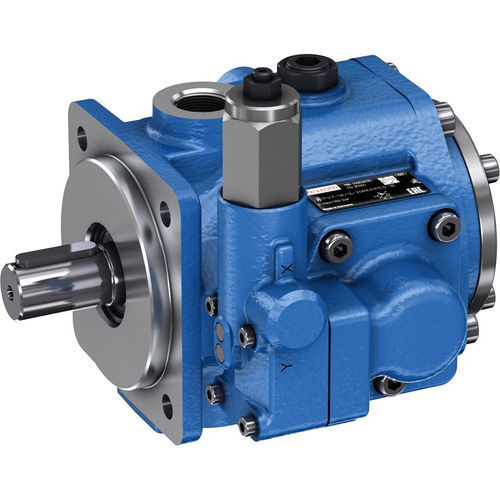

Hydraulic rotary vane pump PV7-1X/25-30RE01MC0-16
cast ironfor industrial applicationsopen

Hydraulic rotary vane pump - PV7-1X/25-30RE01MC0-16 - Bosch Rexroth - Industrial Hydraulics - cast iron / for industrial applications / open

Add to favorites

Compare this product

Characteristics

Type

rotary vane

Material

cast iron

Applications

for industrial applications

Other characteristics

open, combined

Pressure

Min.: 0 bar
(0 psi)

Max.: 160 bar
(2,321 psi)

Flow rate

Min.: 0 l/min
(0 us gal/min)

Max.: 54 l/min
(14.27 us gal/min)

Speed

1,450 rpm
(9,111 rad.min-1)

Weight

18.72 kg
(41.27 lb)

Fluid viscosity

0.8 m²/s

Fluid temperature

Min.: -10 °C
(14 °F)

Max.: 70 °C
(158 °F)

Power

10.2 kW, 13.7 kW
(13.87 hp, 18.63 hp)

Description

Variable displacement pump, size 30 cm³, pressure 160 bar for industrial applications, open circuit High reliability in industrial use. Low noise and pulsation level. Precise control behavior thanks to low hysteresis with high repetition accuracy. Can be combined flexibly with other Rexroth pumps. Rotary vane variable displacement pump For industrial applications with open control loop Displacement type - variable Size [cm³] - 30 Through-drive - with Direction of rotation - clockwise rotation Hydraulic fluid - HLP,HLPD,HVLP,HVLPD
