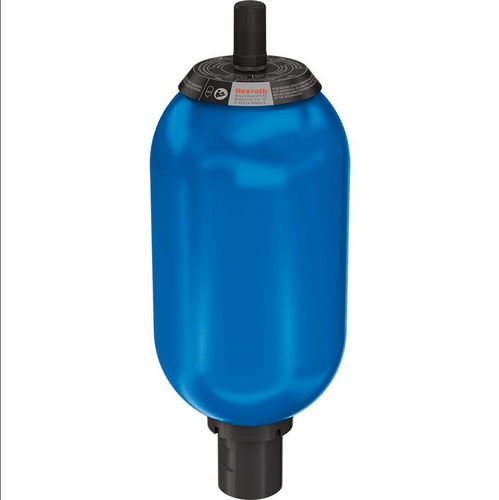

Diaphragm accumulator HAB4-350-6X/0G07G-2N111-CE

bladderplasticstorage

Bladder-type accumulator size 4 liters, 350 bar for industrial applications at standard temperatures Bladder-type accumulator in accordance with the European Pressure Equipment Directive 2014/68/EU For hydraulic energy storage in intermittent operating systems. Energy reserve for emergencies. Fluid volume compensation or shock and vibration absorption in hydraulic systems. Connection G1 ¼, pipe thread with radial sealing surface Bladder material NBR for normal temperature range, mineral oil and HFC fluids Without pre-filling pressure Primed surface Nominal volume [l] - 4 Max. pressure [bar] - 350 Max. flow [l/min] - 450 Material (diaphragm / bladder) - NBR Working port size- G1 ¼ Conformity description - CE - Pressure Equipment Directive 2014/68/EU Weight [kg] - 13.02
