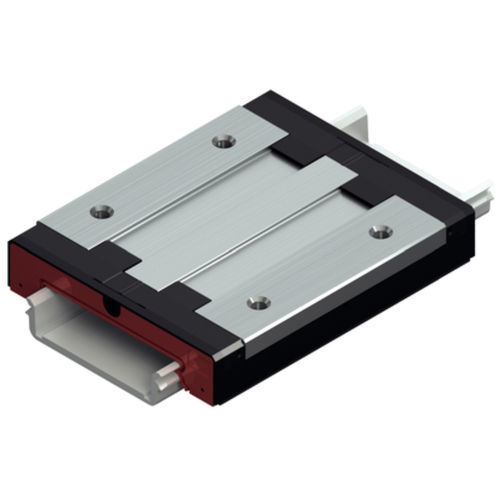

Ball bearing guideway NRII MWA-BLS series

15 mm12 mm9 mm

The miniature version of the ball runner block is characterized by the following product features: Size 9 Format BLS: Width = wide, length = long, height = standard Runner block body made of corrosion-inert steel Preload class C1: Low preload Accuracy class H: High Without ball chain With initial lubrication and without preservation Roller bearing grease Dynalub 520 Without attachment element, left (front reference edge) Without attachment element, right (front reference edge) With relubrication openings Runner block body in standard version Overall length of the runner block = 51 mm Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy. • Accuracy classes P, H and N • Relubrication hole available • Smooth, quiet running thanks to optimally designed ball return and guideway • Ball retention for easy replacement
