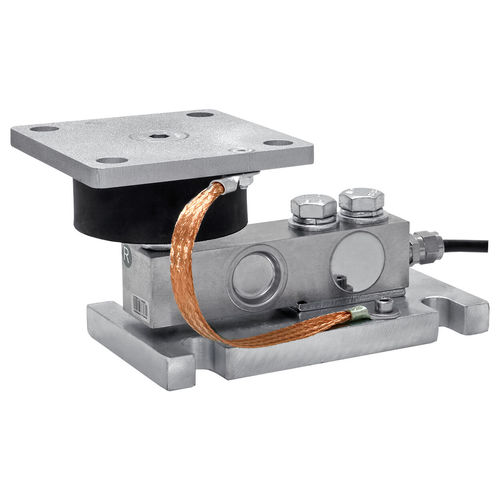

The K30-ME mounting kit was specially developed for the shear beam load cells of the K30 series. A rubber-metal bearing, which compensates for the lateral forces and at the same time positions the load carrier, ensures optimal force reception. The base and bottom plate is made of galvanised steel. Optionally, K30N load cells, made of non-corrosive steel or the K30S, made of alloyed steel, can be installed.
Weighing of small and medium containers, mixers and tanks. Dispensing and bagging scales, packaging machine weighing in the process industry.
Features
Ideal for hopper or tank weighing applications
Material: Galvanised load module; load cell optionally made of K30N stainless steel or K30S alloyed steel
Nominal load: 500 kg - 1000 kg
Load cell hermetically sealed
Rubber-metal bearing for compensation of misalignments, shock loads and slight vibrations
Elastomer bearings with self-centring restoring forces
Particularly robust for long-term use in industrial applications
Easy to mount due to mounting flange
Low construction height
Limited tilt protection
